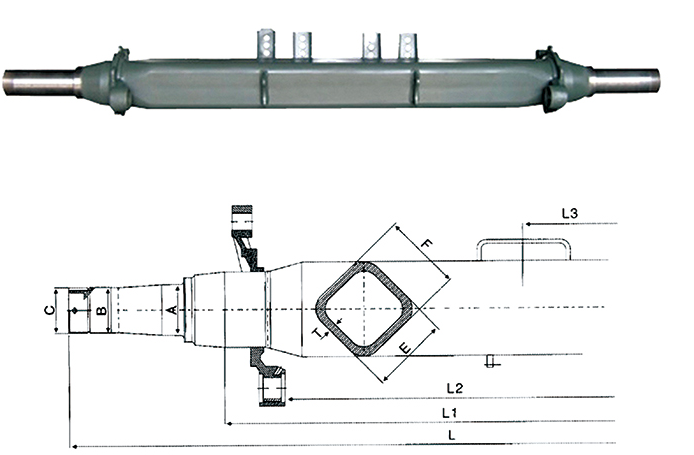

Modle |
Max.Capacity(T) |
A/B(mm) |
C(mm) |
ExFxT(mm) |
L(mm) |
L1(mm) |
L2(mm) |
L3(mm) |
Weight(kg) |
|
LH13 |
13 |
88.9/88.9 |
3.48"-12UNS |
150x150x12 |
2108 |
1644 |
1297 |
382 |
116 |
|
LH14 |
14 |
88.9/88.9 |
3.48"-12UNS |
150x150x12 |
2108 |
1644 |
1257 |
342 |
116 |
|
LH15 |
15 |
100/88.9 |
3.48"-12UNS |
150x150x16 |
2128 |
1664 |
1305 |
392 |
144 |
|
LH16 |
16 |
100/88.9 |
3.48"-12UNS |
150x150x16 |
2128 |
1664 |
1365 |
352 |
144 |
|
LH20 |
20 |
100/88.9 |
3.48"-12UNS |
150x150x18 |
2173 |
1699 |
1260 |
345 |
164 |
|
1.Track length is optional. 2.Axle is available with ABS according to customers' needs. |
|||||||||
